• Air conditioning, single-zone manual
• Assist handle, front passenger
• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers
• Compass, 8-point digital located in the Driver Information Center (Included and only available with (TR9) auxiliary lighting.)
• Defogger, side windows
• Floor covering, full-length Black rubberized-vinyl (Not available with (YF2) Ambulance Package or (RFM) rear floor covering delete.)
• Headliner, cloth, over driver and passenger
• Lighting, auxiliary with reading and underhood lights (Standard on CG13405 and CH13405 models. Includes (U80) 8-point digital compass. Included with (PCR) Express Access Plus Package. Not available with (YF2) Ambulance Package.)
• Lighting, interior with 2 dome lights, defeat switch and door handle-activated switches
• Oil life monitor

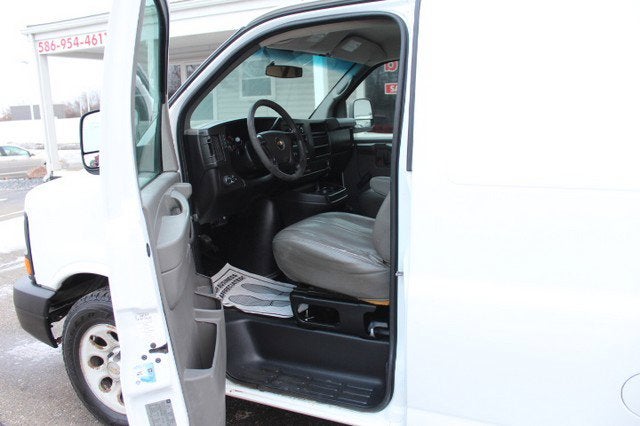

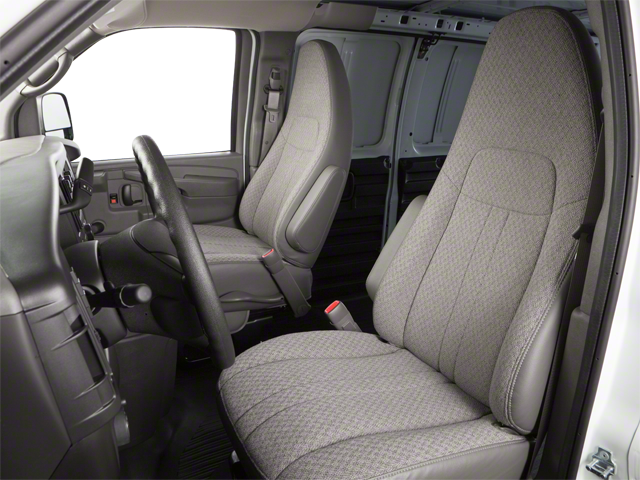

• Seating arrangement, driver and front passenger high-back buckets with head restraints and vinyl or cloth trim
• Seats, front bucket with vinyl trim and outboard head restraints, includes inboard armrests. (Requires (**W) interior trim.)

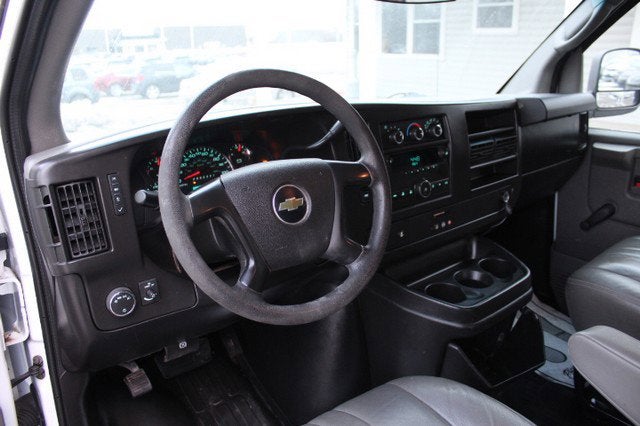

• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Theft-deterrent system, vehicle, PASS-Key III
• Tow/haul mode selector, instrument panel-mounted
• Trim panels, hinged rear side doors and hinged rear doors
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, full-length box ladder-type
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar (Requires CG13405, CG23405, CG23705, CG33405 and CG33705 models.)
• Suspension, rear hypoid drive axle with multi-leaf springs

• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch on models CG23405, CG23705, CG33405 and CG33705. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver-side only frontal air bag. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head/side-curtain (Standard on CG13405 and CH13405 models. Requires (AK5) driver and right-front passenger air bags and (TR9) auxiliary lighting. Not available with (AJ3) driver-side only frontal air bag and SEO option (5L3) interior trim panels. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps
• Door beams, steel-side
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Tire Pressure Monitoring System (does not apply to spare tires)

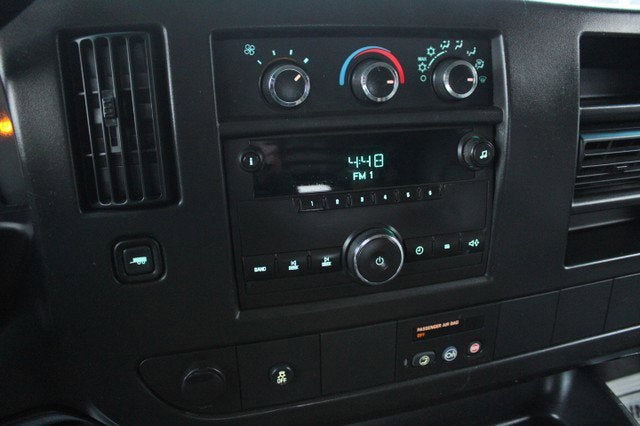

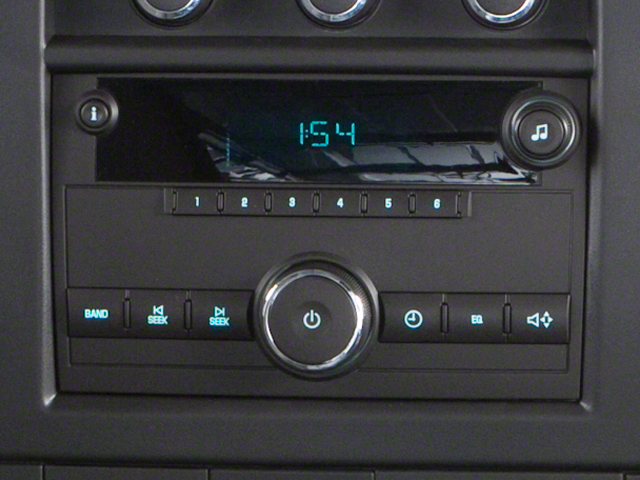

AUDIO SYSTEM, AM/FM STEREO

• with seek-and-scan
• digital clock and 2 front door speakers

ONSTAR, 6 MONTHS OF DIRECTIONS AND CONNECTIONS PLAN

• includes
• Automatic Crash Response
• Emergency Services
• Crisis Assist
• First Assist
• Injury Severity Predictor
• Stolen Vehicle Assistance
• Stolen Vehicle Slowdown
• Remote Ignition Block
• Remote Door Unlock
• Roadside Assistance
• Remote Horn and Lights
• Turn-by-Turn Navigation with OnStar eNav
• OnStar Vehicle Diagnostics
• Hands Free Calling and available OnStar RemoteLink mobile app.

SEATS, FRONT BUCKET WITH VINYL TRIM

• and outboard head restraints
• includes inboard armrests. (STD)

BODY, STANDARD

• (STD)

PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

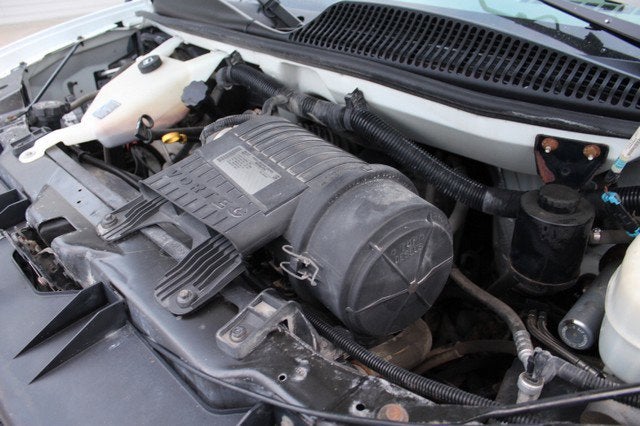

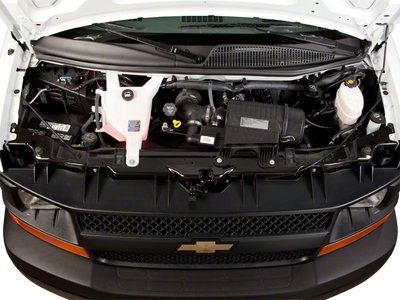

ENGINE, VORTEC 4.3L V6 MFI

• (195 hp [145.4 kW] @ 4600 rpm
• 260 lb-ft of torque [351.0 N-m] @ 2800 rpm) (STD)

DOOR, SWING-OUT PASSENGER-SIDE, 60/40 SPLIT

• (STD)

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS

• with head restraints and vinyl or cloth trim (STD)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

TIRE, SPARE P245/70R17 ALL-SEASON, BLACKWALL

• (STD)

TRANSMISSION, 4-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• tow/haul mode and internal transmission oil cooler (STD)

• REAR AXLE 3.42 RATIO
• AUDIO SYSTEM AM/FM STEREO with seek-and-scan digital clock and 2 front door speakers
• OnStar Equipped (subscription required)
• SEATS FRONT BUCKET WITH VINYL TRIM and outboard head restraints includes inboard armrests. (STD)
• BODY STANDARD (STD)
• PREFERRED EQUIPMENT GROUP includes Standard Equipment
• ENGINE VORTEC 4.3L V6 MFI (195 hp [145.4 kW] @ 4600 rpm 260 lb-ft of torque [351.0 N-m] @ 2800 rpm) (STD)
• ALTERNATOR 145 AMPS
• DOOR SWING-OUT PASSENGER-SIDE 60/40 SPLIT (STD)
• GLASS FIXED REAR DOORS
• MEDIUM PEWTER VINYL SEAT TRIM
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS with head restraints and vinyl or cloth trim (STD)
• PAINT SOLID
• (PPC) TRIM PANEL DELETE REAR SIDE AND REAR DOORS
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT
• GLASS FIXED REAR DOORS WINDOWS
• SUMMIT WHITE
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• TIRE SPARE P245/70R17 ALL-SEASON BLACKWALL (STD)
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive tow/haul mode and internal transmission oil cooler (STD)
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Conventional Spare Tire
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Intermittent Wipers
• Vinyl Seats
• Bucket Seats
• Bucket Seats
• A/C
• Tire Pressure Monitor
• Trip Computer
• Immobilizer
• Power Outlet
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Tire Pressure Monitor

• Vehicle
• Rear Door Type: Dual Swing-out
• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Capacity (amps): 125
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 11.1
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4000
• Curb Weight - Front (lbs): 2631
• Curb Weight - Rear (lbs): 2287
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 9500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4300
• Dead Weight Hitch - Max Tongue Wt. (lbs): 430
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 645
• Maximum Trailering Capacity (lbs): 6700
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4000
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.0 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Tires
• Front Tire Order Code: XPR
• Rear Tire Order Code: YPR
• Spare Tire Order Code: ZPR
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: P245/70R17
• Front Tire Capacity (lbs): 2004
• Rear Tire Capacity (lbs): 2004
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels

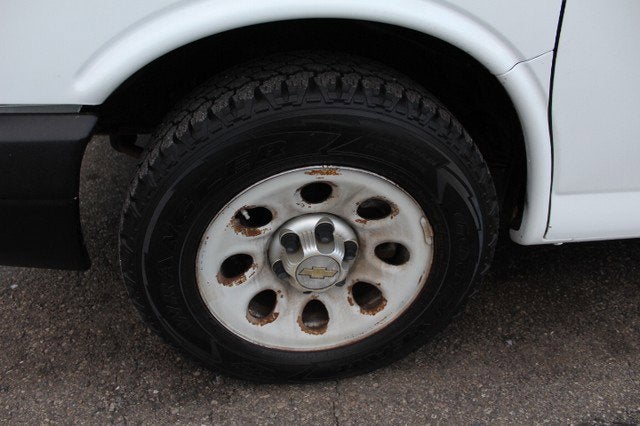

• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31.0
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.00
• Length, Overall w/rear bumper (in): 224.10
• Width, Max w/o mirrors (in): 79.20
• Height, Overall (in): - TBD -
• Overhang, Front (in): 39.70
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 28.40
• Ground Clearance, Front (in): 8.00
• Ground Clearance, Rear (in): 7.40
• Rear Door Opening Height (in): 49.40
• Rear Door Opening Width (in): 57.00
• Side Door Opening Height (in): 47.90
• Side Door Opening Width (in): 44.10
• Step Up Height - Front (in): 20.40
• Step Up Height - Side (in): 20.60

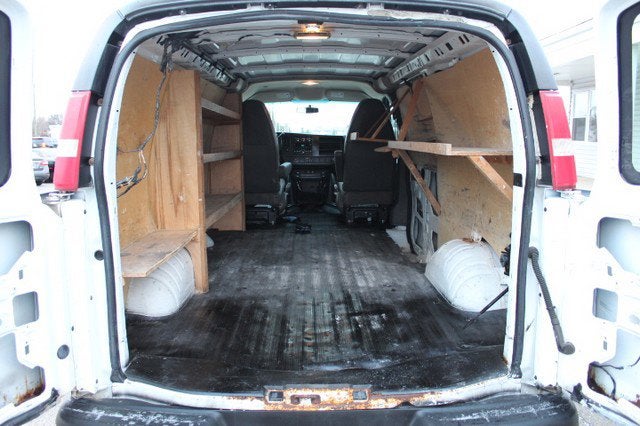

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.60
• Cargo Area Length @ Floor to Seat 1 (in): 124.60
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.70
• Cargo Box (Area) Height (in): 52.90
• Cargo Volume (ft³): 239.7
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 39.80
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Summary

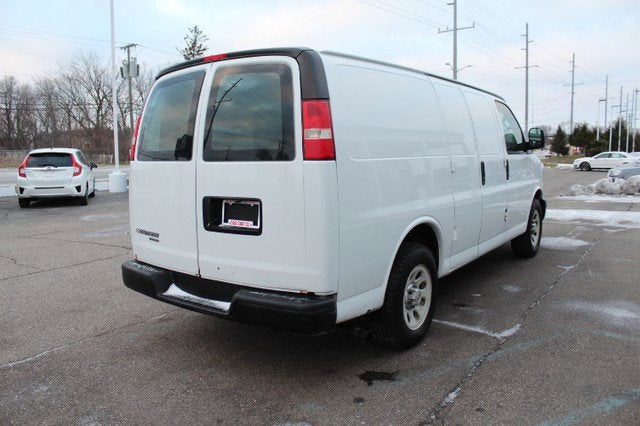

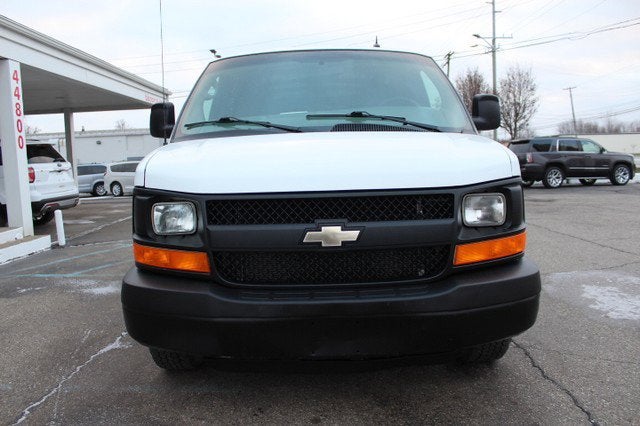

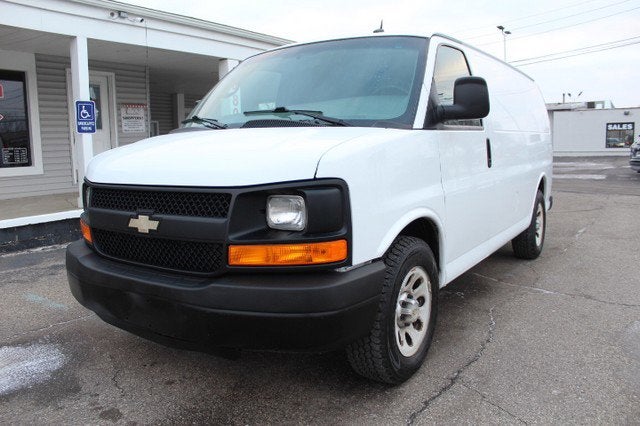

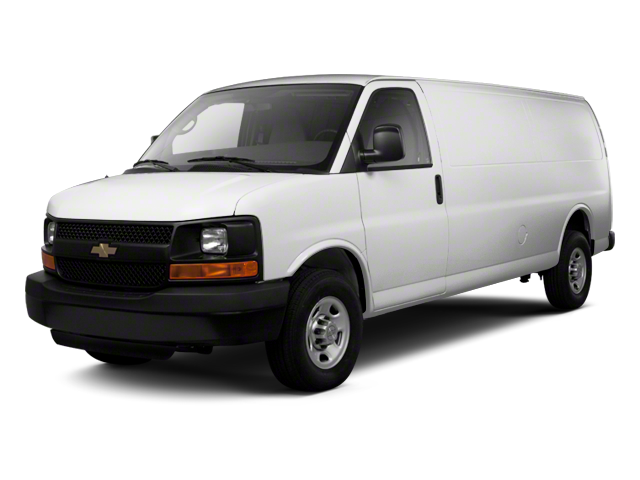

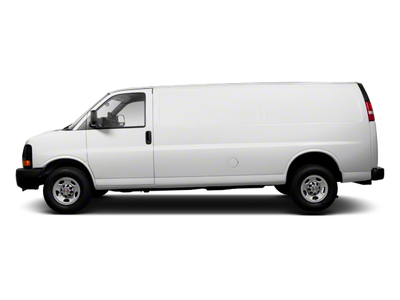

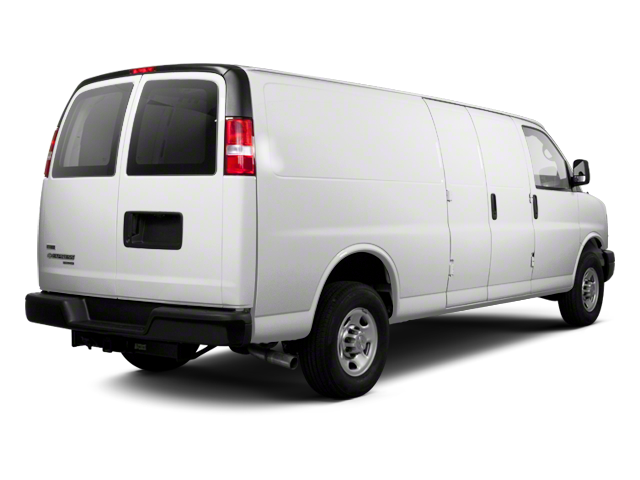

• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: Cargo Van
• Body Code: ZW9
• Emissions
• EPA Greenhouse Gas Score: 4
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.7
