• Air conditioning, single-zone manual
• Assist handles, driver and right-front passenger
• Headliner, cloth, over driver and passenger
• Oil life monitor
• Power outlet, 120-volt
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 145 amps
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs

• Daytime Running Lamps

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER

• seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary jack and 2 front door speakers (STD)

MIRRORS, OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC).

• Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle

BODY, STANDARD

• (STD)

1WT PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGHBACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

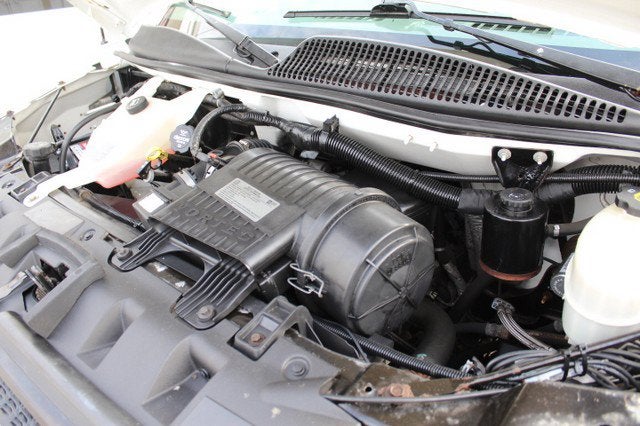

ENGINE, VORTEC 6.0L V8

• (342 hp [255.0 kW] @ 5400 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm)

DOOR LOCKS, POWER

• with lock-out protection

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

CONVENIENCE PACKAGE, POWER WINDOWS AND DOOR LOCKS

• (Includes (A31) power windows and (AU3) power door locks.

CHROME APPEARANCE PACKAGE

• (Includes (V46) front chrome bumper and (V22) chrome grille with dual composite halogen headlamps.

• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• CRUISE CONTROL
• SUMMIT WHITE
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM HEAD RESTRAINTS AND INBOARD ARMRESTS
• GVWR 12 300 LBS. (5579 KG)
• REAR AXLE 3.73 RATIO
• WHEEL CONFIGURATION REAR DUAL
• MIRRORS OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC). Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle
• BODY STANDARD (STD)
• WHEELS 6 - 16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL HEAVY DUTY
• 1WT PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGHBACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• PAINT SOLID
• ENGINE VORTEC 6.0L V8 (342 hp [255.0 kW] @ 5400 rpm 373 lb-ft of torque [503.6 N-m] @ 4400 rpm)
• DOOR LOCKS POWER with lock-out protection
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)
• BUMPER FRONT CHROME WITH STEP-PAD
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• CONVENIENCE PACKAGE POWER WINDOWS AND DOOR LOCKS (Includes (A31) power windows and (AU3) power door locks.
• GRILLE CHROME WITH DUAL COMPOSITE HALOGEN HEADLAMPS
• WINDOWS POWER
• TIRES REAR LT225/75R16E ALL-SEASON BLACKWALL
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• TIRES FRONT LT225/75R16E ALL-SEASON BLACKWALL
• CONVENIENCE PACKAGE TILT-WHEEL AND (K34) CRUISE CONTROL
• CHROME APPEARANCE PACKAGE (Includes (V46) front chrome bumper and (V22) chrome grille with dual composite halogen headlamps.
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Bucket Seats
• A/C
• Bucket Seats
• Power Outlet
• Power Outlet
• Trip Computer
• Immobilizer
• Rear Defrost
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Total Cooling System Capacity (qts): 13.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3085
• Curb Weight - Front (lbs): 3044
• Curb Weight - Front (lbs): 2993
• Curb Weight - Rear (lbs): 1887
• Curb Weight - Rear (lbs): 1502
• Curb Weight - Rear (lbs): 1504
• Gross Vehicle Weight Rating Cap (lbs): 12300
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): - TBD -
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): - TBD -
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: XHF
• Front Tire Order Code: XLP
• Rear Tire Order Code: YHF
• Rear Tire Order Code: YLP

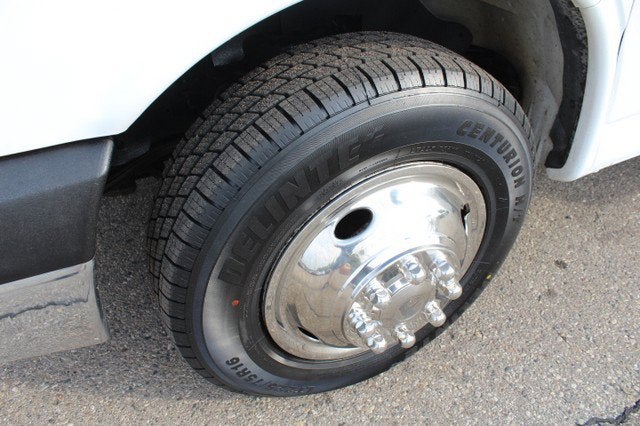

• Front Tire Size: LT225/75R16E
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT225/75R16E
• Rear Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): - TBD -
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33.0
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 139.00
• Length, Overall w/o rear bumper (in): 246.70
• Width, Max w/o mirrors (in): 79.10
• Height, Overall (in): 82.90
• Overhang, Front (in): 39.70
• Front Bumper to Back of Cab (in): 98.70
• Cab to Axle (in): 80.00
• Cab to End of Frame (in): 148.50
• Ground to Top of Frame (in): 23.31
• Frame Width, Rear (in): 34.80
• Ground Clearance, Front (in): 7.60
• Ground Clearance, Rear (in): 6.80
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.20
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Summary

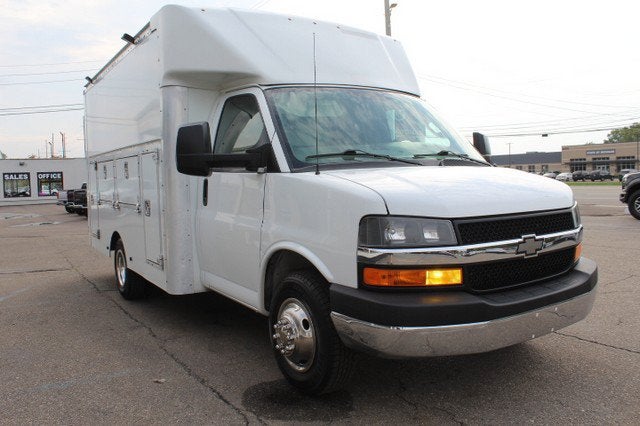

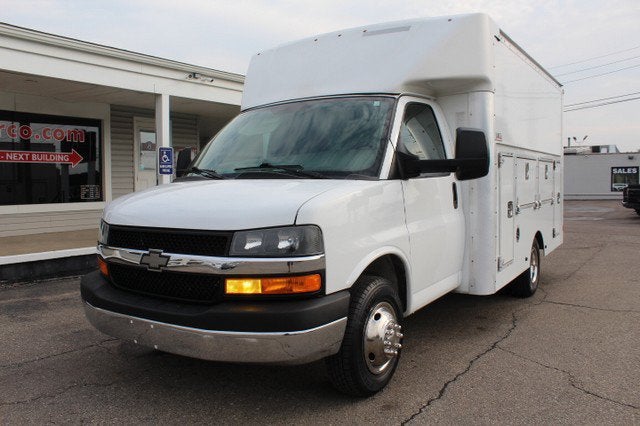

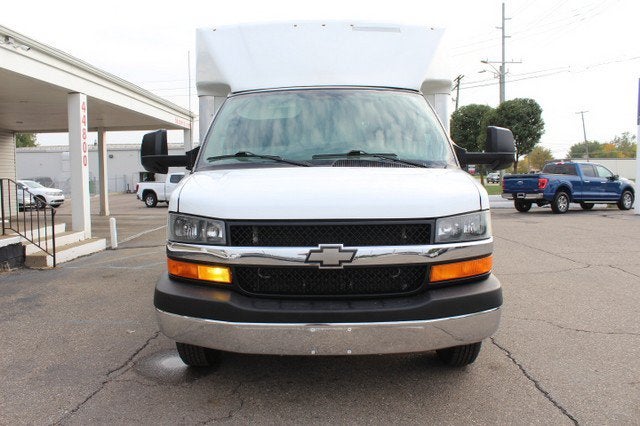

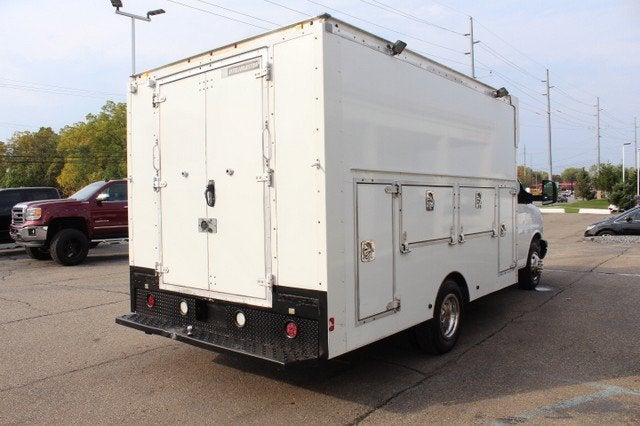

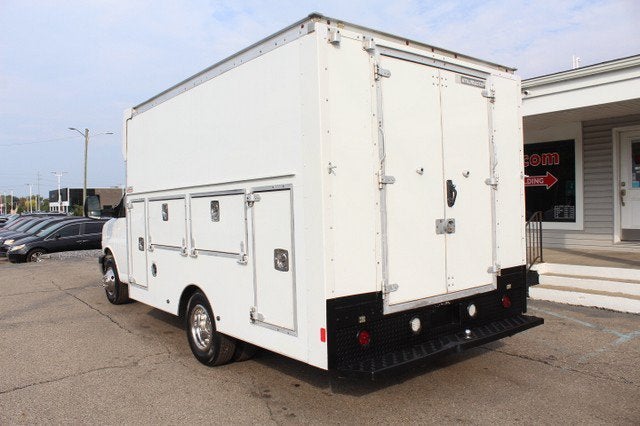

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Body Style: 139.0" WB
• Body Code: ZW9
